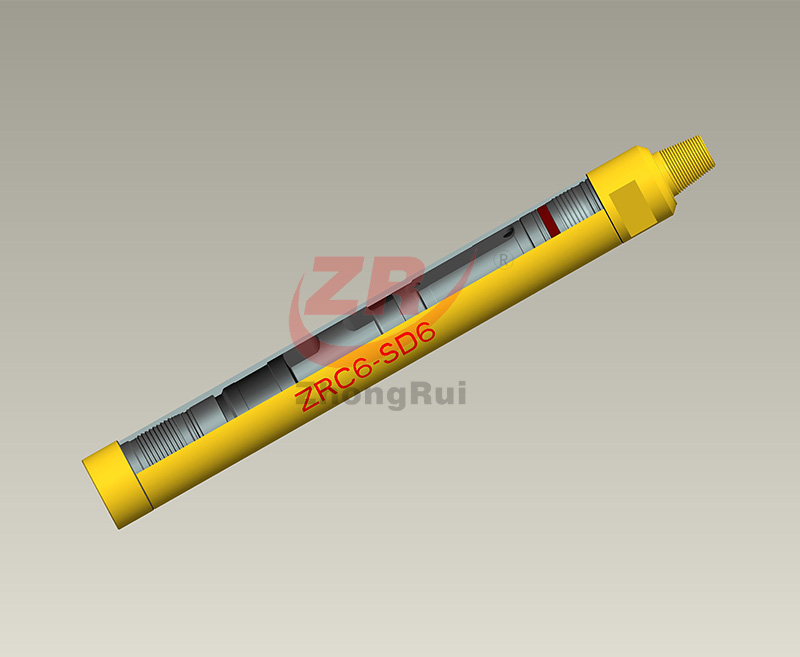

ZRC6-SD6 High Air Pressure with Footvalve DTH Hammers

ZRC6-SD6 Techinical Specifications
Length w/o bitWeight w/o bitDiameterThreadRec. hole size
(mm)(Kg)(mm)
1261100142API 3 1/2 REG152-203
Work pressureImpact FrequencyAir consumptionRec. rotation speed
(Mpa)(Hz)(m³/min)(r/min)
1.0-2.523 at 1.7 Mpa10-2820-30
ZRC6-SD6 DTH hammer features
1.Mainly for drilling hole above 155mm, in geothermal, water well, quarry and mining etc.;
2.Adpot more realiable air distribution method, Valvess type air distribution;
3.Simple parts, more wear-resistence;
4.Low air consumption, energy saving, fast penetration speed;
5.Simple structure, easy maintance; highly matched parts, more realiable, low faliure rate; low disamble rate, long service life, low operating cost, very steady in performance.
