| ZRC3.5-CIR90 Techinical Specifications | ||||
| Length w/o bit | Weight w/o bit | Diameter | Thread | Rec. hole size |
| (mm) | (Kg) | (mm) | ||
| 869 | 23 | 81 | T48x10 | 90-110 |
| Work pressure | Impact Frequency | Air consumption | Rec. rotation speed | |
| (Mpa) | (Hz) | (m³/min) | (r/min) | |
| 0.7-1.4MPa | 16-18 | 6-10 | 25-40 | |

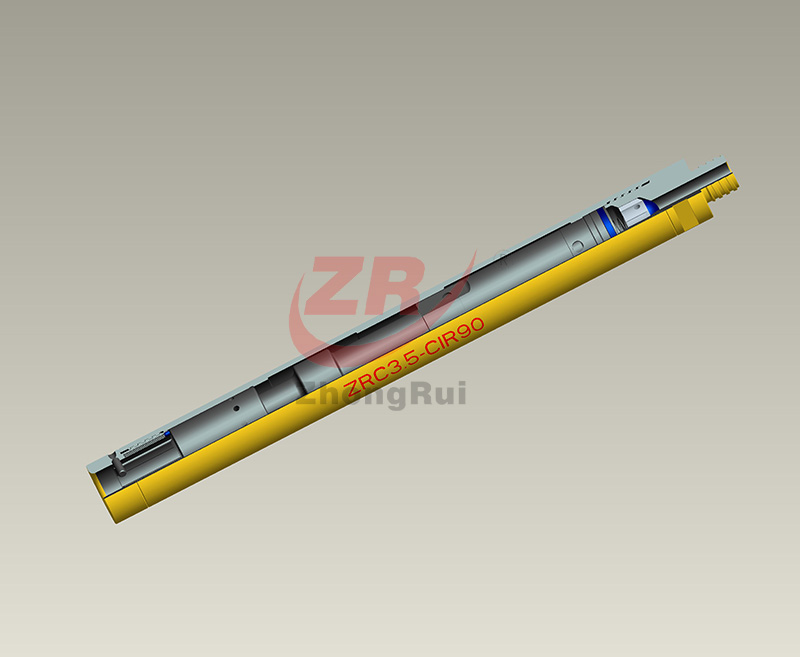

| ZRC3.5-CIR90 DTH hammer features | ||||
| 1．Mainly for blasting hole above 90mm, in mining and quarry; | ||||
| 2．Adpot more realiable air distribution method, Valvess type air distribution; | ||||
| 3．Simple parts, more wear-resistence; | ||||
| 4．Low air consumption, energy saving, fast penetration speed; | ||||
| 5．Simple structure, easy maintance; highly matched parts, more realiable, low faliure rate; low disamble rate, long service life, low operating cost, very steady in performance. | ||||
